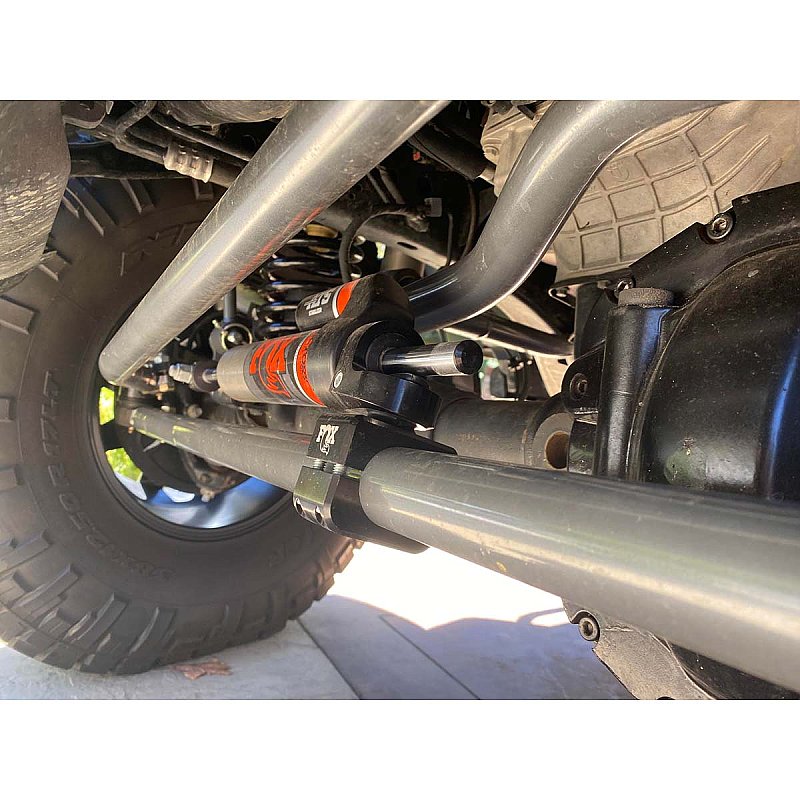

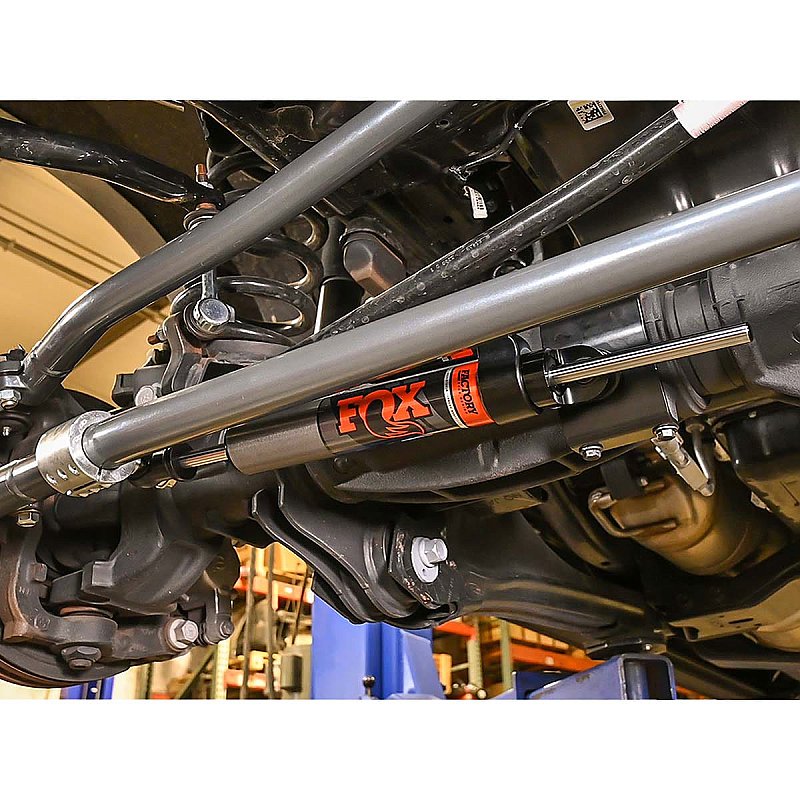

The FOX Performance Series Adjustable Through Shaft (ATS) steering stabilizer offers unrivaled steering control and a striking high tech appearance. The technologically advanced design cancels unwanted steering forces in both directions, taking the place of two conventional opposing stabilizers. It will also respond to your input with 24 clicks of external adjustment to fine tune the feel. The integrated reservoir allows for additional fluid capacity and improves cooling during extreme use. Also included is FOX's relocating hardware that moves the steering stabilizer up and out of the way utilizing a new track bar relocation bolt and tie-rod mounting clamp. The ATS represents a revolutionary breakthrough in stabilizer design.
Specifications:
- Body - Aluminum shock body dissipates heat three times faster than steel
- Components - Black anodized 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Proprietary deburred valve shims
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Oil - Specially formulated for ultimate performance at variable temperatures
- Reservoir - External reservoir design separates shock oil from the high-pressure nitrogen
- Mounting - Applications available for stock and aftermarket lifts kits
Adjustments:
- Nitrogen Pressure Adjuster
- 24 Clicks of Adjustability
Jeep JK / JL / JT Applications:
| Application | Fox Part Number | Clamp Size | Collapsed Length | Extended Length | Travel |
|---|---|---|---|---|---|
| JK Stock Tie Rod | 983-02-145 | 1-3/8" | 14.06" | 22.15" | 8.1" |
| JK Synergy Tie Rod | 983-02-142 | 1-1/2" | 14.06" | 22.15" | 8.1" |
| JK Aftermarket Tie Rod | 983-02-146 | 1-5/8" | 14.06" | 22.15" | 8.1" |
| JL / JT Stock axle mount position | 983-02-148 | N/A | 15.1" | 23.2" | 8.1" |
| JL / JT Synergy Tie Rod in Flipped Position | 983-02-142 | 1-1/2" | 14.06" | 22.15" | 8.1" |
| JL / JT Stock Tie Rod in Flipped Position | 983-02-146 | 1-5/8" | 14.06" | 22.15" | 8.1" |
Dodge Ram 1500 / 2500 / 3500 Applications:
| Application | Fox Part Number | Clamp Size | Collapsed Length | Extended Length | Travel |
|---|---|---|---|---|---|
| 2009-2013 Ram Stock Tie Rod | 983-02-147 | 1-5/8" | 14.06" | 22.15" | 8.1" |
| 1994-2013 Ram Synergy Tie Rod | 983-02-142 | 1-1/2" | 14.06" | 22.15" | 8.1" |
| 2014+ Ram Stock Tie Rod | 983-02-158 | N/A | 15.1" | 23.3" | 8.2" |
|
2014+ Ram Synergy Tie Rod* Requires use of 4050-75 |
983-02-158 | N/A | 15.1" | 23.3" | 8.2" |
*When running a dual stabilizer configuration you can use any Fox ATS stabilizers with (2) Synergy ATS clamp Adapters 4051-01
Ford Super Duty F-250 / F-350 Applications:
| Application | Fox Part Number | Clamp Size | Collapsed Length | Extended Length | Travel |
|---|---|---|---|---|---|
| 2005+ Stock Drag Link | 983-02-143 |
1-5" | 16.67" | 24.78" | 8.11" |
| 2005+ Synergy Drag Link | 983-02-142 |
1-1/2" |
14.06" |
22.15" |
8.1" |
Note: If installing stabilizer on 2012 and newer model with stock suspension or with less than a 2.5'' lift and aftermarket 1-1/4'' bump stop extension, the stabilizer reservoir must be rotated for clearance. Loosen pinch bolt on L-bracket between stabilizer and track bar clamp, rotate reservoir approximately 135 degrees down and toward rear of vehicle.
