Synergy Steering Box Brace for Dodge Ram Trucks are designed to support the steering box sector shaft by using a pillow bearing. This brace ties the front frame horns together to eliminate steering box wonder and significantly increases the life of your vehicles steering box.
| Part # | Description |
|---|---|
| 8557-04 | Dodge Ram Steering Box Brace for (1994-01) 1500 4x4, (1994-02) 2500 / 3500 |
| 8558-04 | Dodge Ram Steering Box Brace for (2006-08) 1500 Mega Cab 4x4, (2003-08) 2500 / 3500 |
| 8559-04 | Dodge Ram Steering Box Brace for (2009+) 2500 / 3500 |
Benefits:
- Designed to support the steering box sector shaft on 1994+ Dodge Ram 4x4 solid front axle trucks
- Ties front frame horns together, helps eliminate steering box "wander"
- Tightens up steering feel and extends the life of your truck's steering box
Features:
- Laser cut, CNC bent and precision welded using 1/4" Hot Rolled Steel plates, and 2.0" x .120" thick square tubing
- Black powder coat finish for maximum corrosion resistance
- 100% Bolt-on installation. No cutting or drilling required!

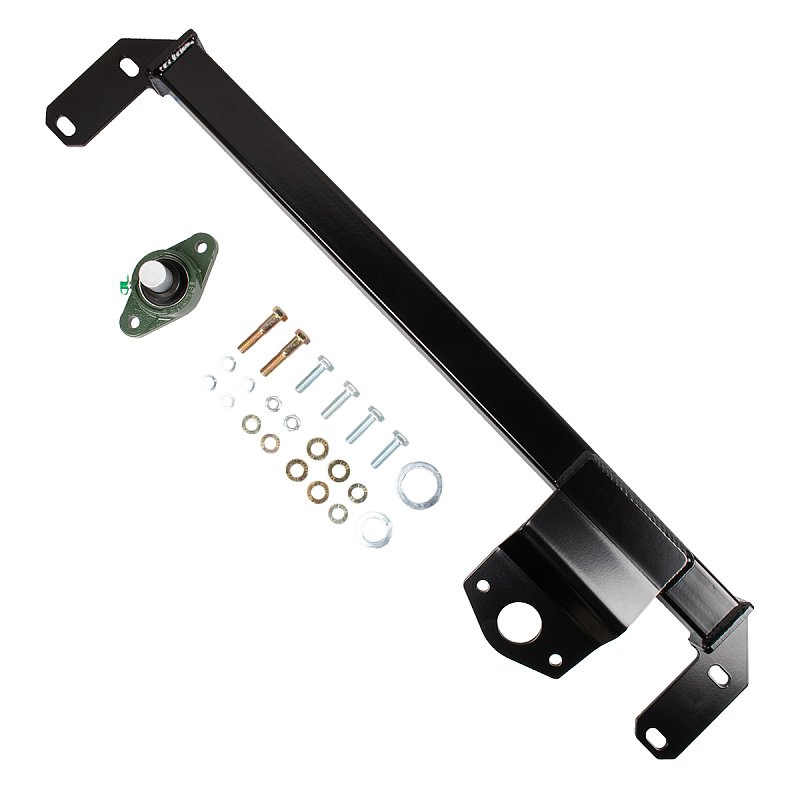

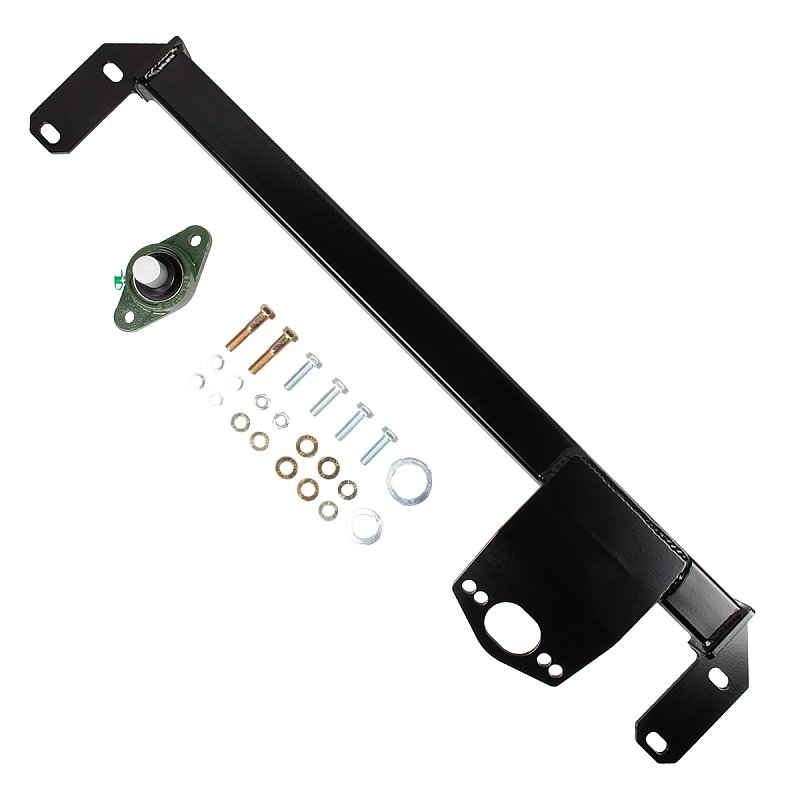

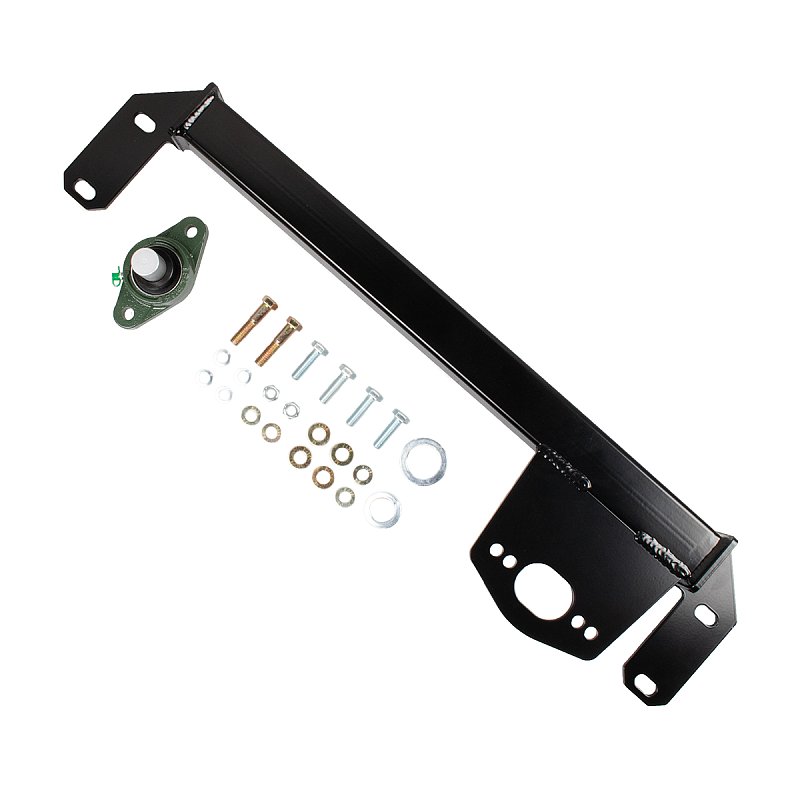

Includes:
- (1) Dodge Steering box brace
- (1) 855702-M30X1.50 Pitman Arm Stud
- (1) Pillow bearing
- All necessary installation hardware
Note:
- 2008 was a split year for Dodge 2500/3500, if you have a 2008.5 you will need the 8558-04 brace with the 855702-M30x1.5-PL sector shaft stud.
- When using an upgraded 09+ 6 bolt steering box on a 94-08 the larger sector shaft stud will be required in addition to your trucks year brace. 855702-M30x1.5-PL
- Does not fit Dodge Ram Power Wagons.
- PSC Big Bore steering boxes for the 94-02 & 03-08 Ram trucks will use the same brace as the factory box.
- Modifications to the brace may be required for proper alignment of the sector shaft nut.
