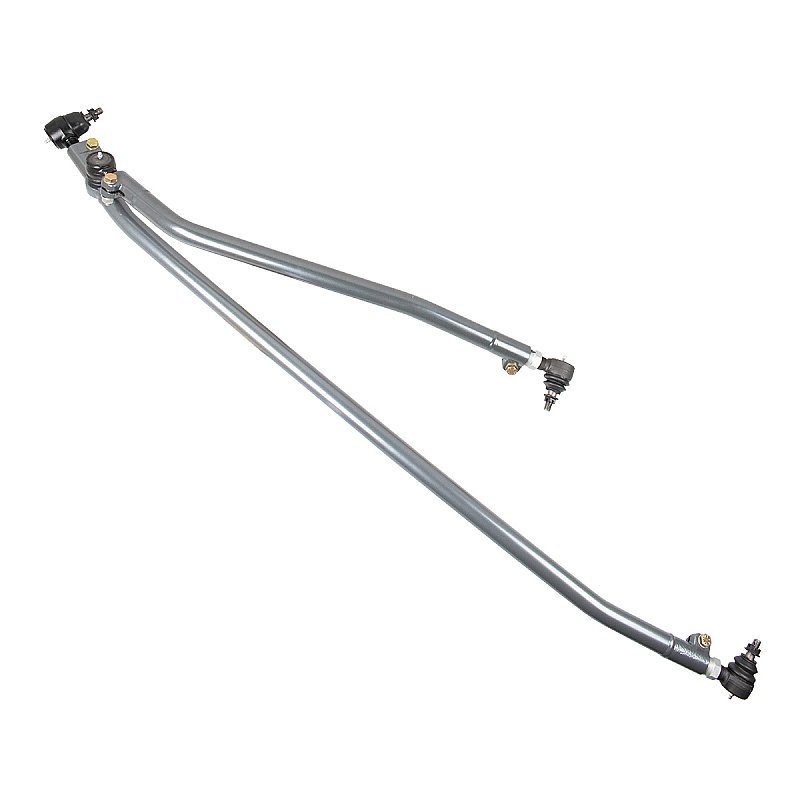

Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Steering Kit

Transform your Ram’s steering feel and durability with the Synergy Heavy Duty Steering Kit—an American-made, bolt-on upgrade that installs with zero drilling or reaming required. This system updates your truck to the modern T-style steering geometry, eliminating the excessive toe change found in the old Y-style setup without introducing the bump-steer issues common in crossover conversions.

To ensure precise, predictable steering, we use our innovative single plane tie rod ends that stop unwanted tie-rod “flop” and remove the sloppy dead zone many Ram owners struggle with. Fully welded, heavy duty construction delivers exceptional strength to resist bending whether you're daily driving, hauling heavy loads, or exploring rugged terrain.

Complete the kit: For the ultimate steering upgrade, pick up our Heavy Duty Adjustable Track Bar engineered for confidence on and off road.

Fitments:

Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the tie rod), Synergy Part # 8525-01. The late model trucks use cross over steering (drag link is attached to the knuckle and does not attach to the tie rod), Synergy Part # 8725-01.

Please verify what style you have before ordering.

Benefits:

• Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
• Heat treated tie rod is over 200% stronger than OEM and formed post heat treating for superior strength
• Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman arm
• Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
• Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
• Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
• Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
• Provides 2" of additional ground clearance from stock while adding critical strength

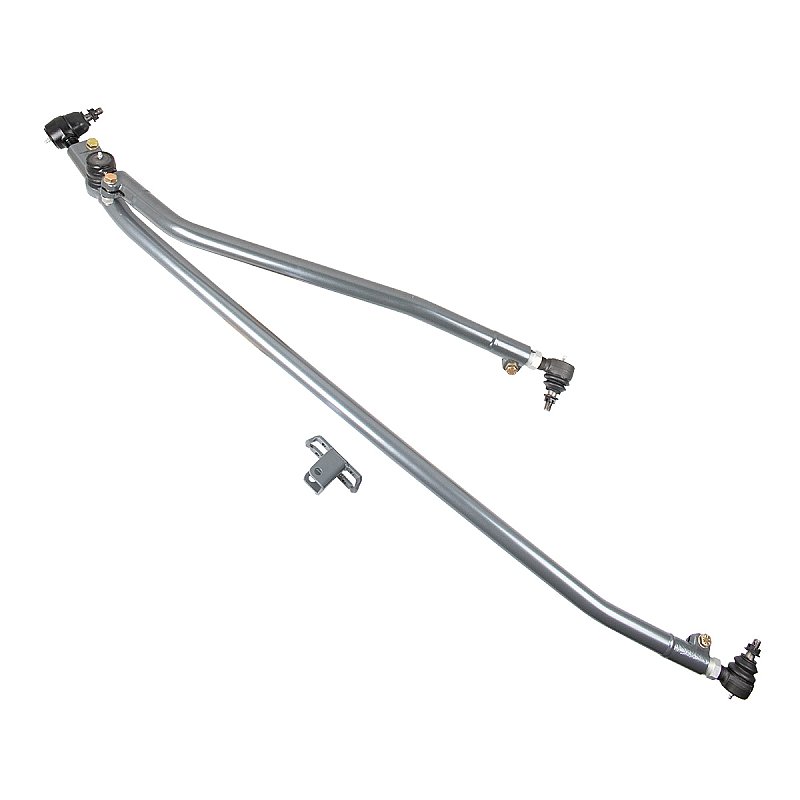

• Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX Stabilizers, or other aftermarket stabilizers with 1/2" mounting bolts
• Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep

Features:

• Drag link is precision bent from 1.5" x .250 wall USA made DOM
• Tie rod is engineered and bent from 1.5" x .188 wall heat treated 4130 chromoly
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable  tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end

• Drag Link:
  • Min collapsed length: 35.375"
  • Max extended length: 37.375"
• Tie Rod:
  • Min collapsed length: 59.75"
  • Max extended length: 62"

Includes:

Notes:

• For 03-08 trucks using the stock pitman arm, switching to the Mopar pitman arm for 08.5+ trucks is recommended if not already equipped - Mopar P/N: 68039930AA
• New single plane tie rod end - part number 4167-L - is not compatible with the metal misalignment caps (part number 4134-02)
  • If upgrading to the new single plane tie rod end on older model tie rods that include the metal caps, the opposing tie rod end will require a new poly boot part number 4131-01
  • If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Compatible with Ram 3500 4x4 Cab and Chassis models of the same generation
• Not compatible with 4500 / 5500 models
• Known compatibility with aFe Power differential cover; We cannot guarantee fitment with all aftermarket diff covers

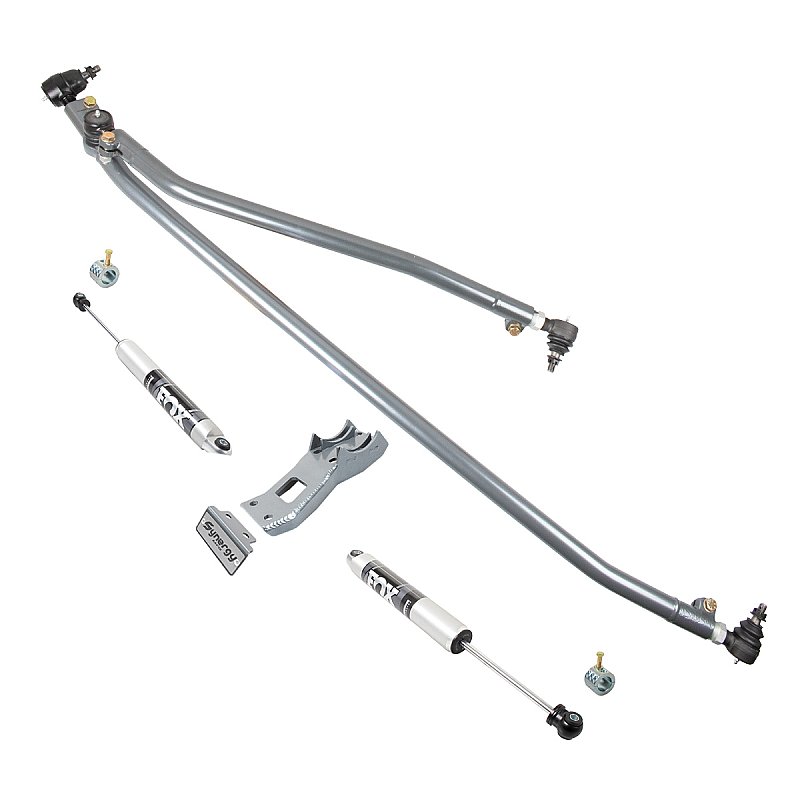

• Recommended Fox Steering Stabilizers:
  • IFP - Internal Floating Piston (6401-01)
  • TS - Through Shaft (6402-03)
  • ATS - Adjustable Through Shaft (6403-03)
• Synergy High Performance Grease part number 4119 recommended to be used with all Synergy Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize part number 4118  should be used with all threaded components
