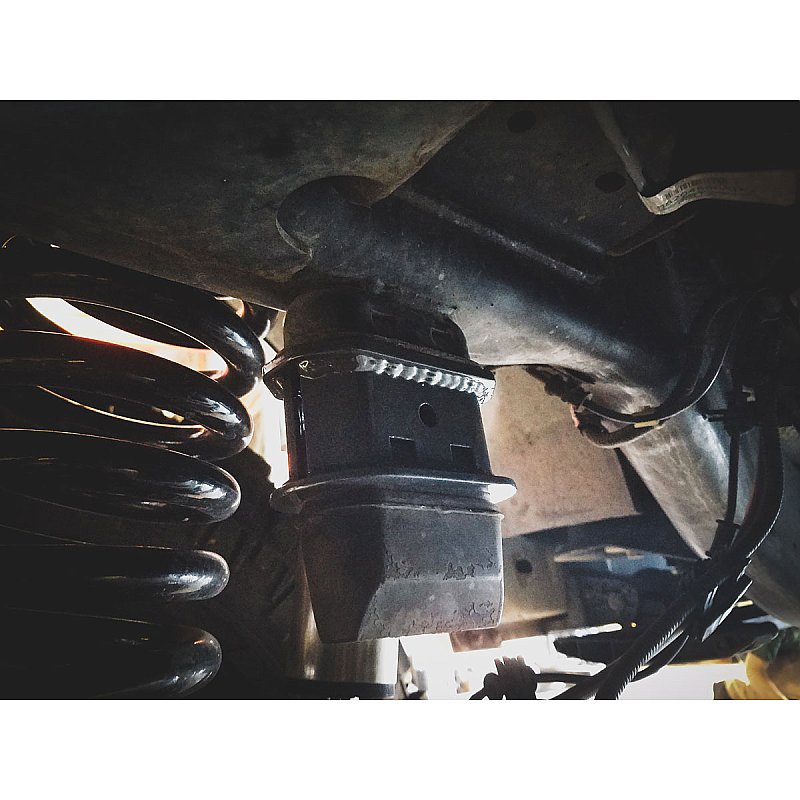

The Synergy 2003+ Dodge Ram 2500 / 3500 Front Bump Stop Spacer relocates your factory bump stops 1–2 inches to properly accommodate taller front coil springs, longer shocks, and larger tires after a lift. By maintaining correct bump stop engagement, these spacers help protect your suspension components from over-compression and harsh bottoming-out. They reuse the OEM bump stop and install easily with a simple, bolt-on design—no cutting or welding required.
Fitments:
| Part # | Description | Bump Stop Spacing |
|---|---|---|
| 8734-10 | 1994 - Present Ram 2500 / 3500 4x4 | 1" |
| 8734-20 | 1994 - Present Ram 2500 / 3500 4x4 | 2" |
Benefits:
- Prevents longer front coil springs from going into coil bind.
- Prevents potential shock damage from bottoming out.
- Allows additional clearance for larger tires.
- Allows the front axle to be positioned in the forward position with our 8730-03 Radius Arm Drop Brackets
Features:
- Lowers factory bump stop 1-2 inches
- Manufactured and CNC formed from laser cut 3/16 inch steel for superior durability
- Powder coat finish for maximum corrosion resistance
- 100 percent bolt on components assures an easy, trouble free installation with the use of basic hand tools
Notes:
- Requires 8555-60-XX Front Coil Springs For 03-13 trucks
- Requires 8755-XX for 14+ trucks
