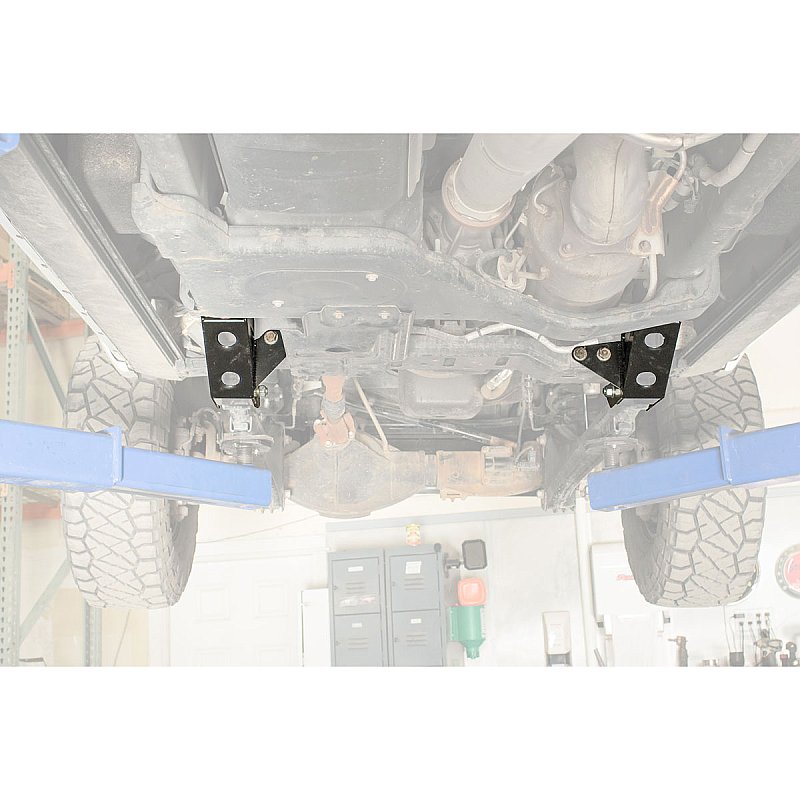

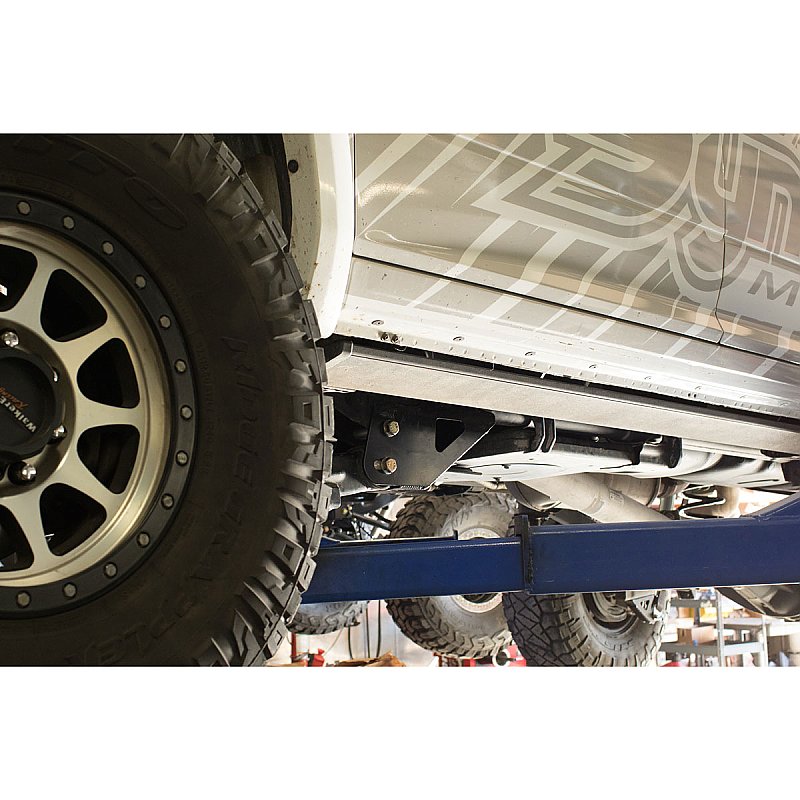

Synergy radius arm drop brackets improve ride quality by lowering the radius arm mounting locations at the frame to maintain factory front suspension geometry for leveled and lifted trucks. Flip-able cam spacers in the drop brackets allow the user to run the axle 1/2 inch forward for leveled trucks or 1-1/2 inches forward to clear larger tires and taller lifts.
Fitment:
- 2014+ Ram 2500 / 3500
Benefits:
- Improved ride quality by maintaining factory suspension geometry at lifted ride heights
- Adjustable axle placement for oversized tires and taller lifts
- Drop brackets lower the front control arm mounting position 3 inches at the frame side
- Maintains factory geometry on lifted vehicles
Features:
- CAD designed from heavy duty 3/16 inch steel plate and includes an integrated, crush resistant, grade 50 A-572 steel skid plate.
- Stainless steel flip-able cam spacers allow the axle to be located 1/2 inch forward or 1-1/2 inches forward to allow clearance for larger tires and taller lifts
- Drop brackets do not need to be removed to service the drivetrain
- Bolt-on design allows installation with simple hand tools
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
Includes:
- (1) 873003-R RIGHT HAND DROP BRACKET
- (1) 873003-L LEFT HAND DROP BRACKET
- (2) 873003-07 OEM LOCATION SPACER TUBE
- (4) 873003-11 TRANSMISSION BRACKET SPACERS
- (4) 873003-21 1 INCH OFFSET RADIUS ARM SPACER
- (1) Ram 2500 / 3500 Front Radius Arm Drop Brackets Hardware Kit
Notes:
- Designed to be used with 2.5 - 6 inch front lift springs.
- Recommend having the truck aligned after installation.
- Running the axle 1-1/2 inches forward may require driveshaft spacer (8731-01) or lengthened driveshaft.
- Running larger tires with the axle 1-1/2 inches forward will require an aftermarket front bumper or trimming of the stock bumper.
- Running the axle 1-1/2 inches forward may require sway bar relocation brackets.
