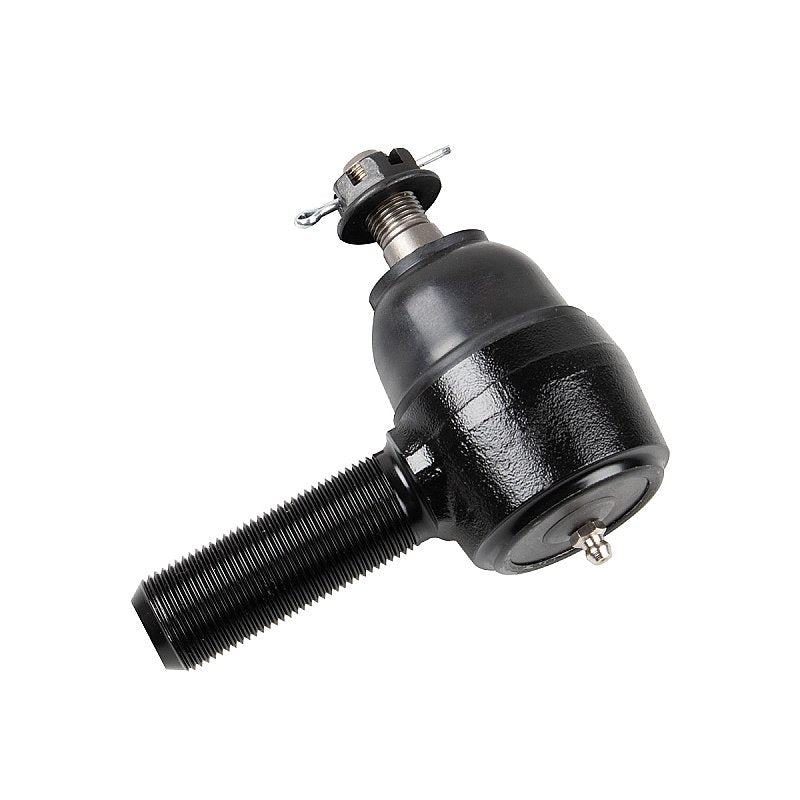

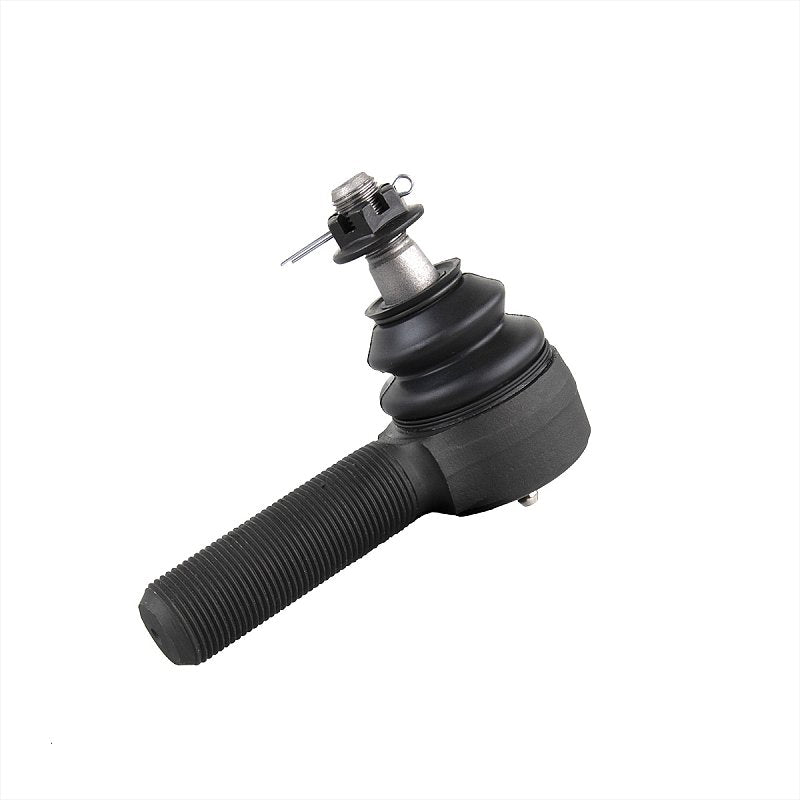

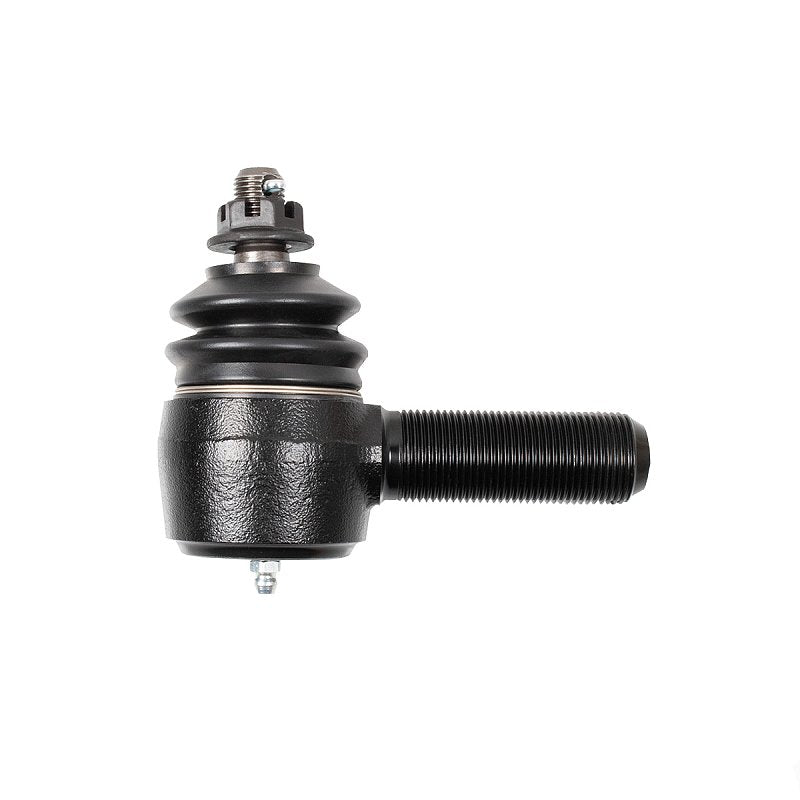

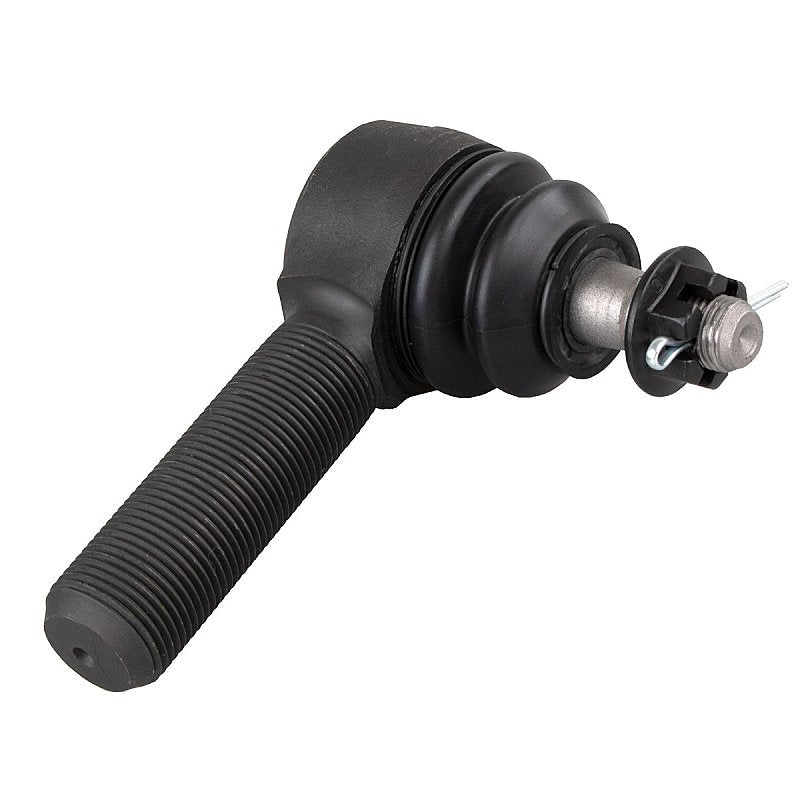

Synergy Dodge Ram Heavy Duty Replacement Tie Rod Ends

Regular price
$60.00 USD
Sale price
$60.00 USD
Regular price
Sold out
Unit price
per

  • Synergy Dodge Ram Heavy Duty Replacement Tie Rod Ends
  • Fully greaseable sintered metal on metal bushing design has high wear resistance
  • Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
  • Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
  • Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
  • Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
  • Outperforms factory and all other aftermarket style tie rod ends by offering a larger shank with no stress riser (doesn't neck down at base)
  • Elimination of the nylon ball race
  • Boots are made from tear/wear resistant black NBR and come with retaining springs. (4133-L, 4136-L, 4138-L, and 4160-L only. 4134-L low misalignment boot available separately, 4134-02)
  • Includes all necessary hardware for installation
  • 1-14 UNF LH Thread
  • Synergy High Performance Grease (4119) is the recommended grease for this product
  • Zerk specs: DynaFlo 1/4'-28 straight steel zinc grease fittings with ball check
  • Fits:  94-current Dodge Ram trucks with Synergy 8525 or 8725 Steering

Tie Rod End Fitment Table

Fitment Description Driver Side Tie Rod End Passenger Side Tie Rod End Drivers Side Tie Rod End Boot
Passenger Side Tie Rod End Boot
8567-11 03-13 Drag Link 4133-L 4160-L 4131-01
4131-01
8567-12 00-02 Drag Link 4133-L 4160-L 4131-01
4131-01
8567-13 94-99 Drag Link 4136-L 4160-L 4131-01
4131-01
8568-01 03-13 Tie Rod 4134-L 4134-L 4134-02
4134-02
8568-02 00-02 Tie rod 4134-L 4134-L 4134-02
4134-02
8568-03 94-99 Tie Rod 4136-L 4136-L 4134-02
4134-02
8701-01 14+ Drag Link 4160-L 4134-L 4131-01
4131-01
8702-01 14+ Tie Rod 4138-L 4138-L 4134-02
4134-02

Tie Rod End Size Table


Part # Description Thread Taper Style
4133-L HD TIE ROD END, DODGE DRAGLINK 1-14 Left Hand 1:8 TAPER (7.125 DEG INCL ANGLE) Standard
4134-L HD TIE ROD END, DODGE TIE ROD 1-14 Left Hand 1:6 TAPER (9.5 DEG INCL ANGLE) Standard
4136-L HD TIE ROD END, DODGE TIE ROD 1-14 Left Hand 1:8 TAPER (7.125 DEG INCL ANGLE) Standard
4138-L HD TIE ROD END, DODGE TIE ROD 1 1/4-12 Left Hand 1:6 TAPER (9.52 DEG INCL ANGLE) Standard
4160-L HD TIE ROD END, DODGE DRAG LINK 1-14 Left Hand 1:8 TAPER (7.155 DEG INCL ANGLE) Single Plane


Notes:

  • Part numbers 4134-L and 4136-L use HD tie rod low misalignment boot and caps - 4134-02
